600 TONNES KHARIS CLASS PATROL CRUISER
1. BRIDGE.  Captain, pilot, navigator/commo, weapons/electronics warfare specialist.
Access hatches to dorsal & ventral laser turrets.
2. ENGINEERING.   Access hatch to ventral vehicle bay.
3. CAPTAIN'S STATEROM
4. OFFICER STATEROOM.  1 or 2 officers accomadation.
5. COMMON AREA/MESS HALL/BRIEFING ROOM.
6. CREW QUARTERS.  8 bunkbeds.  Starboard cargo hold is also convertable to crew
quarters  if there is a marine unit aboard.  Opitional  G-Carrier access hatch.
7. SICKBAY
8. AIRLOCK
9. ARSENAL
10. STARBOARD ACCESS TUBE (CUTAWAY VIEW)   Includes airlock, docking for
ship's boat or  Dagra assault boat.   Also includes landing ramp for exiting/entering ship on
land.
11.  PORT  ACCESS TUBE.
12.  FUEL SCOOP & TREATMENT PLANT
13   VENTRAL VEHICLE DOCK.  Can carry G-Carrier or EVA pods.
14.  LAUNCH: 3G ACCELLERATION.  Armed with 1 or 2 lasers.
CG: Captain's Gig.  Carried on some versions.  Access via escape hatch outside captain's SR.
PP:  Powerplant.
ML: 2 triple missile launch tubes, 1 dorsal above PAW, 1 ventral below PAW.  Designed to
launch missiles or sandcaster rounds.
J;  Lower jump drive sections
J2:  Upper jump drive section
ND: Nuclear damper.
S: SENSOR
LT:  2 Triple or Quad laser turrets, 1 Dorsal above bridge & 1 Ventral below bridge.  Quad
turrets are unpopular experiment and are not carried on many vessels.  Quad turrets
malfunction of a roll of  8+ on 2D6.  Gunners with electronic skills can modify with their
skill level.
BETTE NOIRE'S AARABELLA
1. BRIDGE
2. CAPTAIN'S STATEROOM
3. OFFICER STATEROOM
4.  COMMON AREA/SICKBAY.   Converts by use of lifts to store away common area furniture,
machinery & uploading  2 autdocs & diagnostic chairs for below.
5. CREW QUARTERS.   11 Bunkbeds standard.  Room for 3 more bunkbeds.
6. EVA EQUIPMENT & ARSENAL.
7. ENGINEERING
8. PORT ACCESS TUBE.
9.  STARBOARD ACCESS TUBE(CUTAWAY).   Includes landing ramp when planetside,
airlock, & dock
for Dagra assault boats. Dagras mount beam lasers, laser cutters, or salvage arms equipped with a
laser cutter/
manipulative claw.
10.  ACCESS HATCHES TO DORSAL & VENTRAL LASER TURRETS.
11.  ESCAPE HATCH TO BETTE'S FIGHTER.
12. ACCESS HATCH TO G-CARRIER.
13. FUEL SCOOP & TREATMNENT PLANT.
14. LAUNCH.  Armed with 2 beam lasers & 2 VRF Gauss guns.
15.  ACCESS HATCH TO VENTRAL VEHICLE DOCK
16.  DAGRA ASSAULT BOAT
17.  VENTRAL VEHICLE DOCK.  Usually carries G-Carrier or Grav tank
PAW: PAW BAY 50 Tonne particle accellerator weapon.
R; REPULSOR
ND; NUCLEAR DAMPER
ML:  2 Triple missile launch tubes.  Launches sandcaster pods or missiles.  60 Missile magazines.
Launchers
& their magazines located above & below the PAW bay
S: SENSOR
PP; POWEPLANT
G: VRF GAUSS GUNS ( 6000 Rds. each)   8 in popout modules to cover approaches to ship.  8 in
popout modules covering internal access points.

The Aarabella's registry is Lilithian, though its current home port has moved from St. Foy to
Tortuga.
Capt. Noire, besides 2 spare PAW modules, also has spare 50 tonnes cargo modules for when she
running as a Marid armed trader.
BARATORA CLASS 300 TONNE ASSAULT BOAT
1. BRIDGE.   2. CAPTAIN'S STATEROOM.  3. READY ROOM/MESS. 4. OFFICER
STATEROOM 5. CREW STATEROOM  15 single beds.   6. MARINE QTRS(2)   Each room has
15 bunkbeds accomodating a total of 60 marines.  7. SICKBAY.    A: AIRLOCK.   LT: TRIPLE
LASER TURRET ACCESS. SC: TRIPLE SANDCASTER TURRET ACCESS.  J: JUMP
DRIVE.  M; MANUVER DRIVE. ND: NUCLEAR DAMPER.  PP: POWERPLANT.   F: FUEL
The Beaumonde Industries BARRATORA Class Assault Boat is designed to deliver small
assault troops  to any destination with maximum survivability.   The 120 tonne cargo bay has
modular starboard & port doors that can interchanged to launch grav vehicles or drop capsules
with equal ease.  The Barratora can carry up to 60 marines + officers & carry up to 90 tonnes of
vehicles.   The Barratora is often used as a patrol ship or revenue cutter using its marine
contingent as board parties.  Barratoras are often carried by larger naval vessels.

The Barratora is used by the navies of  much of the Mapepire Cluster, Guildheim(20), & Die
Weltbund(163).
A few vessels  are used by pirates & LOFWIA.   Seven Barratoras were lost in the recent
Nervenheilanstalt conflict, some of which has been put back into service by locals.
WEBRUNNER CORSAIR MALADROIT JESTE
MAIN DECK:

1:  BRIDGE     2: AUTODOCS   3:   PARTICLE ACCELERATOR BARBUTES.    4:  CREW QTRS.  8
double bunkbeds
per qtrs.     5:   OFFICERS QTRS.   6:  ENGINEERING.  7:  ACCESS HATCH:   Up to dorsal triple laser
turret.  Down
floor hatch via telescoping staircase to cargo bay.  13:  ACCESS HATCH:  Up to lifepod bay (4 1-man
lifepods).  Down
to cargo deck.   PP:  POWERPLANT.  M: MANUVER DRIVE.  SC:  TRIPLE SANDCASTER TURRET.

CARGO DECK:   150 tonnes main cargo loads rear cargo door with retractable loading ramp.

8:  DUAL PURPOSE DOCKING RING/SHIP'S BOAT HATCH.    2  laser cutters on exterior rotating
mount allows the
Jeste to cut a docking port in any vessel.   9:  SHIP'S BOAT BAY.    10:  LIFEPOD BAYS.  3 1-man lifepod
per
bay.   11:   VEHICLE BAY.   60 tonnes capacity.   12:  LOWBERTHS.   14:  ACCESS HATCH.  Up to main
deck
& down to lower deck.   G: POPUP SECURITY VRF GAUSS GUN (3000 rd. mag. each)

LOWER:   Two 10 tonne & two 20 tonne cargo bays.  Can be converted to prisoner qtrs.   Deck includes fuel
scoop
with treatment plant
MT:   TRIPLE MISSILE ACCESS HATCH.


The Maladroit Jeste was the last addition to the House of Lords fleet, built from captured prizes to Deron
Cortez's
specs.  It has a massive, Beaumonde-built avionics suite which allows it to jam sensors /communications in
any ship
under 15,000 tonnes & any tech level, manned his electronics specialist, the Poicxh  Wheiv.   The Maladroit
Jeste
registry is Bloodgard, though its home port is Trayfowen, where Deron has  32% interest in Kaledoi Casino.
The odd dockring/hangar  door arrangement at the bow of the cargo is adjustable to most docking rings.  The
rotary
laser cutters allows the Leste make her dicking arrangements in ships, space stattions, building, etc.  The
ring is used to put large boarding parties to quickly enter a target ship.  The docked ship's boat's 1 beam
laser & quad VRF gauss guns
can give fire support to the boarding party.
BEAUMONDE INDUSTRIES CHOVIX CLASS 300 TONNE  ARMED JUMP TRACTOR.
The  Chovix jump tractor is a common site in the spinward sections of The Beyond, trailing sections of the
Vanguard Reaches.   Over 2100  examples of tjhis vessels has been built by Beaumondes Industries since its
inception in 1082.
Its armour, firepower, speed & agility combined cargo capacity  makes it a very useful vessel, especially in
the more dangerous section of the Beyond, Vanguard Reaches, Foreven, & Far Frontier sectors.   It can
carry cargo by cargo net, or by 100, 200, 300, & 400 tonne cargo pods.   Its powerful manuver & jumpdrives
can haul cargo up to 100 tonnes with loss of jump capability or manuver speed.    Over 100 tonnes its
manuver & jump capability is reduced by 1 for every100 tonnes of cargo.   Besides shipping lines, the
Chovix is popular among free traders who mainly use second-hand Chovixes.   The Chovix has become
increasingly used by corsairs, (especially by Webrunners) who find it useful to tow disabled prizes away
from the scene of attack.  The Chovix can be use a a fighter tender, carrying  6-9 fighters on a tubular
module hooked into the ship's dockring.  The System navy of Guilhelm has 12 of these fighters tenders built
under  license by Chobi-Guilhelm Aerospace.   There is also a belter variant, the Mocodoma, which has an
armour factor of 5, & has one or two of the turrets armed with laser cutters instead of combat lasers.  The
acceleration of this model is only 4G.

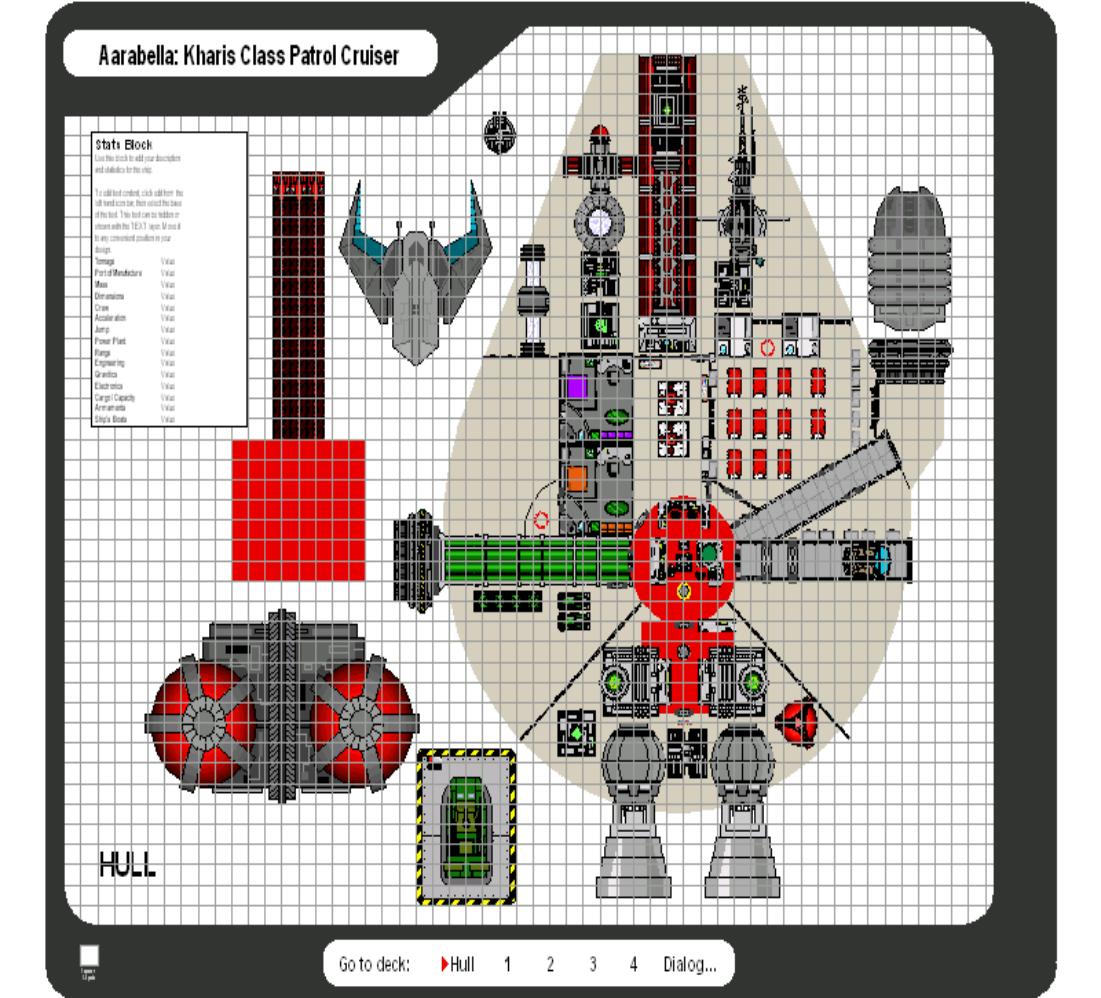

LINK TO ARABELLA ORIGINAL CC2  VERSION
LINK TO KHARIS CC2 ORIGINAL VERSION
DOWNLOAD CAMPAIGN CARTOGRAPHER VIEWER

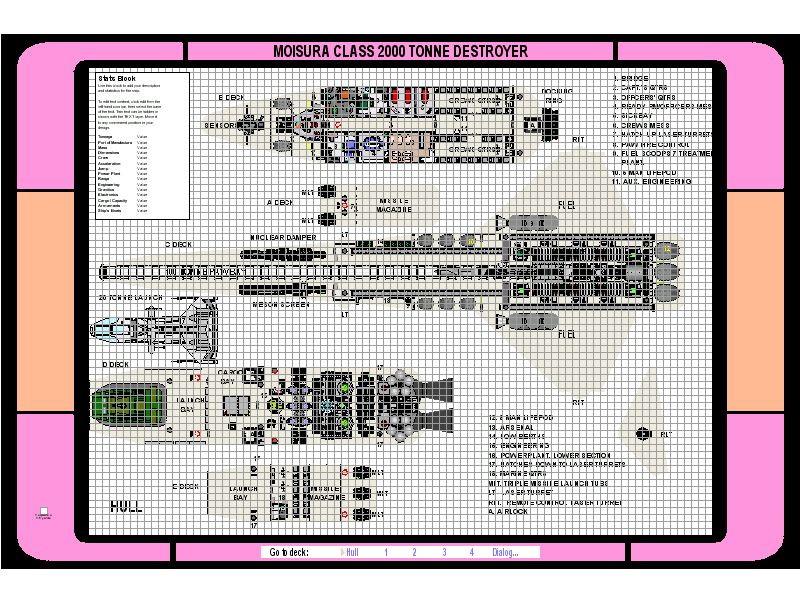

MOISURA CLASS 2000 TONNES DESTROYER
Link to CC2 original of Moisura
Link to CC2 Original of Maladroit Jeste

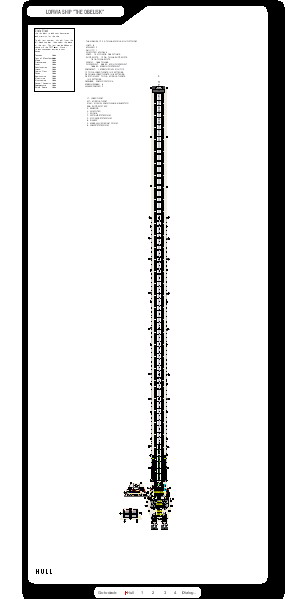

THE OBELISK
Link to CC2 drawing of the
Obelisk
JUMP: 4
MANUVER: 2
AGILITY: 1
ENERGY POINTS: 800
CREW: Officers 18, Ratings: 240
CARGO: 1000 TONNES
SMALL CRAFT:  13 20 tonne Ship's Boats,
16 10 tonne Ship's Boats
ARMAMENT: 1 Spinal mount Meson Gun
factor=L,
TL13; 12 Triple laser turrets in 3 batteries;
24 double laser turrets in 6 batteries; 20 triple
missile       launch tubes in 5 batteries.
DEFENSE;  Armored hull, factor K; 1 Meson
Screen
factor 6; 1 nuclear damper factor 5.
Another legacy of the late, unlamented, Reyno Beaumonde is The Obelisk.  Built in secret for the
League of Free Worlds Insurgent Army, The Obelisk is a mobile meson gun platform. built from a
meson gun built ostensibly for the Die Weltbund Navy; & the jump carrier Calliope which was
supposed to carry it to Bundestag for testing.
The Calliope was in reality designed to break apart & form the bridge, living quarters, & engineering
section  of The Obelisk.  The meson gun, its fircontrol center, was already in secret armored by
Beaumonde work crews with
spaces built into it for turrets & glaciation generators.    The glaciation generators forms a
'snowball' effect around
the ship disguising it outlines & rendering it as a icy planetoid to sensors.  Its odd mix of laser turret
s stems from its  turret weapons  being culled from LOFWIA victims.

The Obelisk is meant for terror raids or ambushing major naval units..  Despite its armor, The
Obelisks lack of manuver speed & agility would be fatal in a prolonged action against any naval
vessel of 10,0000 tonnes & up.

It currently captained by Anedil Anidiikerib, an Imperial outlaw in charge of its  naval terror
campaigns. The Obelisk has been responsible for the destruction of a Die Weltbund destroyer
squadron in the Schloss Adler system
and a planetary  monitor off Friedland (the latter staged as a Die Weltbund terror raid).  The is a  60
Mcr. reward for the destruction of The Obelisk by th LOFW & Die Weltbund.   Its current location is
unknown, but the current
Duke of St. Foy has allowing the LOFWIA to built a base in its outer planets.
ANEDIL
ANIDIIKERIB,
A.K.A.
'DESCHORD',
CAPTAIN OF
'THE
OBELISK'

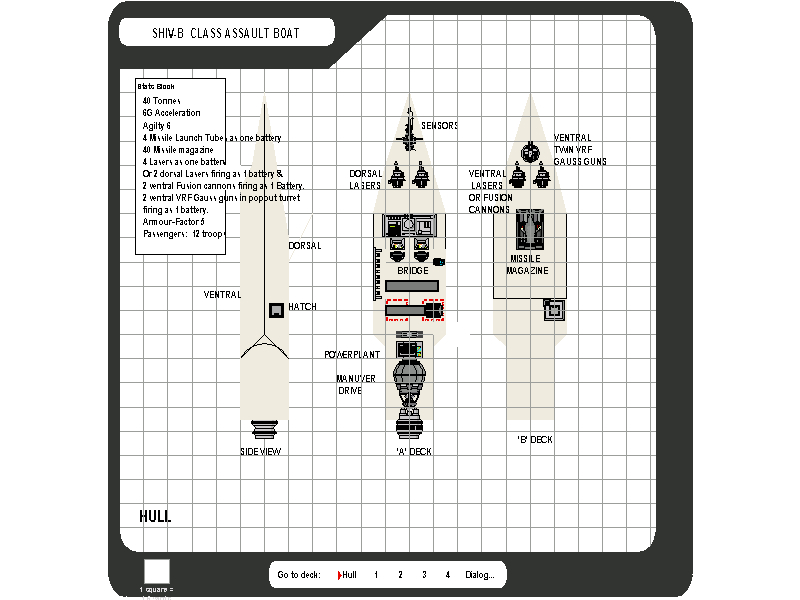

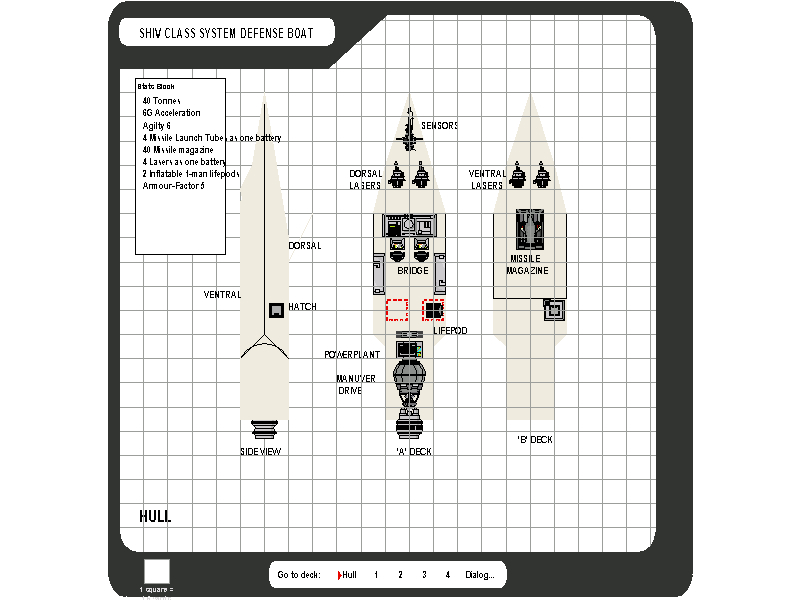

SHIV SDB & SHIV-B ASSAULT CUTTER
SHIV:  CC2 ORIGINAL VERSION
SHIV-B  CC2 ORIGINAL VERSION

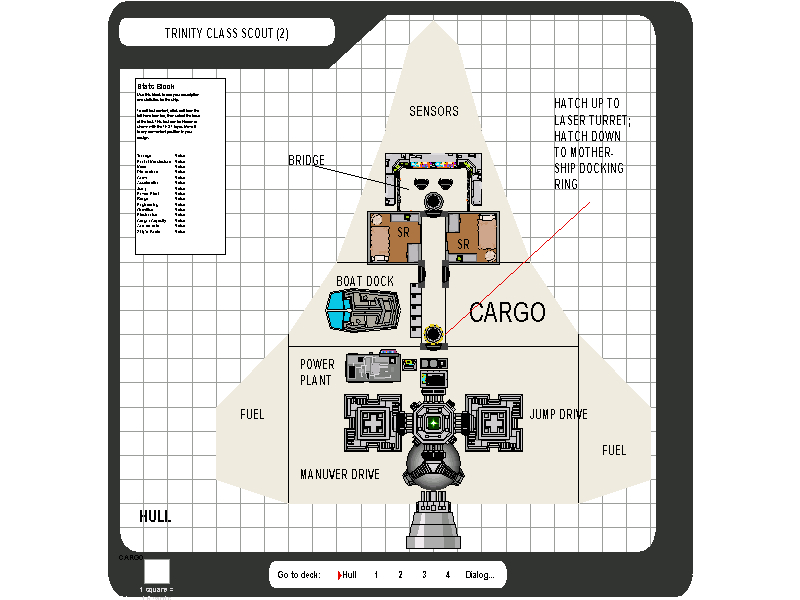

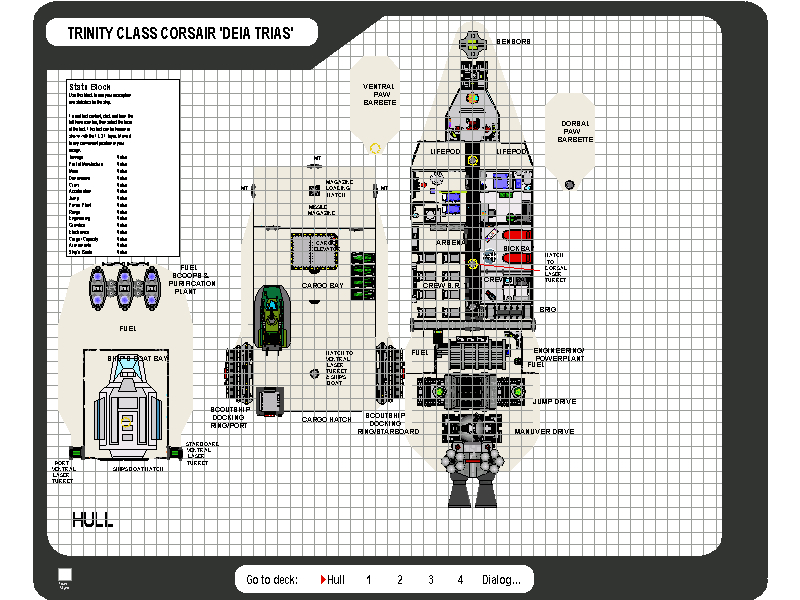

TRINITY CLASS CORASAIR: BETTE NOIRE'S 'DEIA TRIAS'
Link to the original CC2 version  of the Deia Trias
mothership
Link to the original CC2 version of the Trinity Class scout.

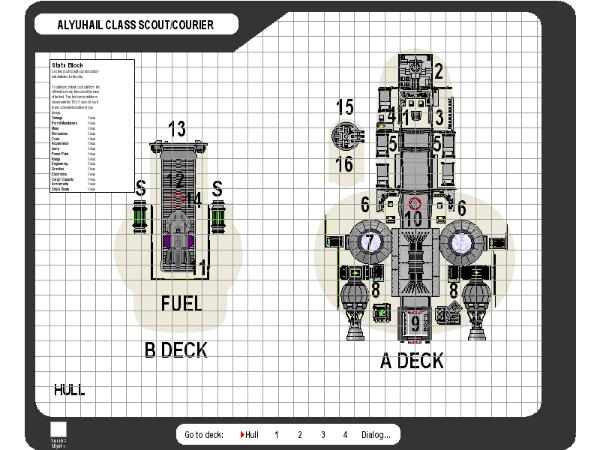

ALYUHAIL CLASS 120 TONNE ASLAN SCOUT
1. BRIDGE.   2. AVIONICS, COMPUTER.  3. LOCKER.  4. CAPTAIN'S QTRS.
5. STATEROOMS.   6. ENGINEERING.  7.  JUMP DRIVE.  8. MANUVER DRIVES.
9. AIRLOCK.  10. HATCH UP TO DORSAL TURRET.  11.  VEHICLE/BOAT BAY.
12. EXTENDING RAMP.  13. BAY DOORS WITH DOCKING RING.
14. ACCESS HATCH UP TO 'A' DECK.   15. TRIPLE MOUNT TURRET.  16. MAGAZINE.
S. FUEL SCOOPS & PURIFICATION PLANT.

TONNES:  120.    JUMP-2.   5G Acceleration.  Agility 6.   Model 2bis computer.
HARDPOINTS:  2
ARMAMENT:   Two forward firing bow mounted lasers standard.   Triple dorsal mount with
varied                              weaponry can be mounted. Magazine capacity for 30 missiles/sandcasters
DEFENSE:       Armored hull- Factor 2.
CREW:             1-5
CRAFT:            10 tonne ship's boat, air/raft, or vehicle.
CARGO:          40 Tonnes.
COST:              28.3 MCr.   25.6 MCr. in large numbers.
TL:                    13
Built by the Aslan firm Sorilyr at their yards on Northstar, Intercourse, & Beaumonde, the Aluyhail
combat scout is a tough & useful vessel.  Designed for surviving combat & extreme conditions, she is
fast, agilt & well armed.  Two fixed lasers are mounted in the bow under the avionics package as its
standard armament.  A triple turret can be installed mounted various combination of weapons;
though among Aslan units three missile launchers are the norm.  The ship has two airlocks with
docking capability-one in the stern of the craft & one built into the vehicle launch bay.
Introduced in 1076 & constantly upgraded, the Aluyhail is the most common small craft in
non-heirate Aslan naval units.  14 of these vessels have been purchased by the IISS.  17767 serve in
various Aslan organization thoughout the Beyond, Vanguard Reaches, Trojan Reaches, Touchstone
& the Spinward Marches sectors.  243 serve in various navies & private hands as well as 34 in the
hands of pirates.

Link to the original CC2 drawing of the Aluyhail
Here's some of the designs I came up with over the years.  Most are CC2 version of the original
pen & paper designs, others like the Moisura are original CC2 designs, or like the Shiv, CC2
interpretations of models.  Unfortunately, a few designs have been lost over the years.
Notably, the 'Carson Oma' medical ship from the Gelt/Miranda/Dr. Moran campaign.
I've included a link to down the Campaign Cartographer Viewer if you don't have CC.
SHIPS OF THE HIGH TORTUGA CAMPAIGN
BEAUMONDE INDUSTRIES VIPER IV 100 TONNE ESCORT
A common vessel in the Beyond, The Vanguard Reaches & parts of the Foreven & Far Frontier
sectors, currently 242 in operational use.  The Viper IV, first introduced in 1101, is the first Viper
built from the keel up as a Viper instead of a conversion from a Suleiman S-class scout.  Costing
27.56 MCr., the Viper IV is far more expensive than a conversion, but since it is a purpose built
vesssel it performance outmatches any of the Viper conversion in manuver speed & agility.
The ships serves in the navies of Guildheim, St. Foy, Eslyat Magistry, Ros Confederation, Lilith, &
Liberty Hall.  Several are also in private hands as well, use as escorts or courier vessels. 33 Vipers
mount the standard twin turret of the Suleiman scout/courier. The turret armament is usually
either missiles, lasers or a mix of both types(usually 2 missile, 1 laser). Unlike the conversions, the
Viper IV resembles a standard Suleiman scout in outward appearance.
 A variant, the IVs scout
built to Phoenix Couriers specifications.  The dorsal turret has been removed, cargo reduced to 1
tonne, the 2 lifepod bays have been removed, and the crew cabin is now a bay for 1 two man
lifepod. Jump drive is increased to jump 4.    Seven IVs have been delivered to Phoenix with 4 more
under construction.
1. Concealed PAW barbute(TL13).  2.  Dorsal triple turret.  3. PAW powerplant. 4.
Bridge. 5. Captain's stateroom.  6.  Crew stateroom.  7. Avionics.  8. Airlock/entry port.
9. EVA room.  10. Engineering.  11. Ship's Locker.  12. Jump drive.  13.  Manuver Drive
14. Hatch up to dorsal turret.


   STATS:

TL:                    9
Tonnage:         1
20 tonnes.
Crew:               2
Performance:  Jump 2, 6G Acceleration , Agility 4.  18EP  Poweplant-3 (TL11)
Electronics:    Model 3bis computer
Hardpoints:    2
Armament:     1 PAW barbute firing as 1 battery,  1  laser turret firing as 1 battery.
Defenses:        Armored hull-factor 3
Craft:              2 man lifepod.
Fuel Treatment:  Fuel scoops, no purification plant.
Cargo:
6 tonne.
Link to the originall CC2 drawing of Viper IV
BEAUMONDE INDUSTRIES VIPER III CONVERSION
The first standard production conversion kit, the Viper III started production in 1088.  The kit strips
away & replaces most of the upper deck on the scout. Armament  standard TL10 PAW barbute
concealed in the bow, & a dorsal triple turret (laser, missile, or both). Though the powerplant is
upgraded  (3), the performance is similar to a standard scout/courier.  The conversion kit is designed
for both the Suleiman & Serpent(see Paranoid Press' The Beyond) class scout/courier.   The
conversion can pass a cursory scan & long range visual exam(over 2 km) but will fail easily a  good
sensor operator & close visual scan.   Cost:  25% of the original cost of the scout craft modified if the
client is providing the hull.  If not, the cost is the used hull plus 33-40%.
323 Viper III's have been built with 244 still in operation with various navies.  There is also 23
Serpent class Viper III's  operating with Beaufort Lines as armed couriers.
Link to the original CC2 drawing of the Viper III

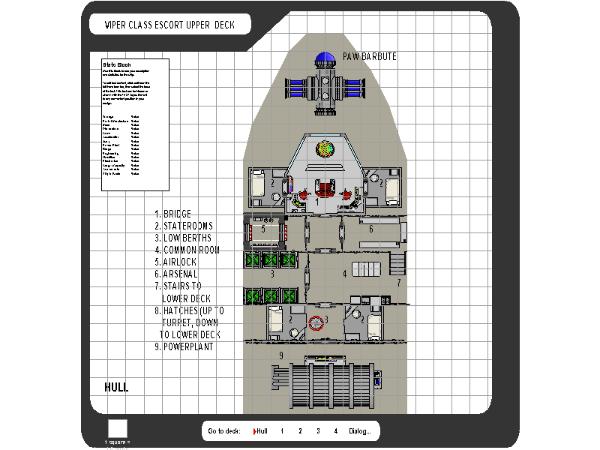

VIPER III CONVERSION KIT
BEAUMONDE INDUSTRIES VIPER I & II
The first Viper I conversions were a hodgepodge of Imperial, Zhodani, & local 100 tonne
hulls types.  The conversion were a TL10 PAW barbute built onto the dorsal or ventral
hull of the scout. A few models were produced with an internal mounting but they proved
too an expensive conversion & only 8 were every produced.  The Viper I conversion
drawback that with a standard scout powerplant, the manuver drive was reduced to 1G.
Otherwise, the Viper stats comform to a standard scout performance.  Because of its
cheapness, the design was popular with small navies, Die Weltbund, mercs & bounty
hunters.   Only a few Viper I conversions are produced since 1109.  365 Viper I's have been
produced since 897.

In 1067 the Viper II conversion came into being on a contract from Die Weltbund.  This
conversion includes an upgraded TL10 power plant(3)  replaced the turret with a single
TL9 PAW barbute.   The first 45 examples, the IIA had a problem in combat with the
single weapon (suffering 21 losses in the first 2 decades of operation).  As a result, the IIB
model of 1098 added two bow mounted lasers to boost the armament.   526 version of the
IIB operate in the Beyond, Vanguard Reaches, Fareven,  Far Frontiers & the outer fringes
of the Spinward Marches(the latter mostly with merc units).  The IIB has proven popular
with mercs & pirates.  The Viper is converted mostly from Imperial or Imperial-influenced
scout designs. Performance is standard for the scout/courier the Viper is converted from,
making it limited as a combat ship. The Viper II is the cheapest of the conversion Vipers.
Basic cost is 10% of the original cost of the hull  for the IIA, & 13% of the original cost of
the hulls for the IIB.    If the client does provided the hull, the cost goes to 33%  of the
original hull cost. The IIB's are still being produced by Beaumonde.
GENERIC ICE ASTEROID SHIP
Designed around a nonjump ice asteroid around 4-6K tonnage mass, it can be used for
many types of adventurers, belters, scientists, scouts, pirates, merc, navy, etc.  I have two
variant for the central B-Deck, a large hangar deck & an ore processing plant.

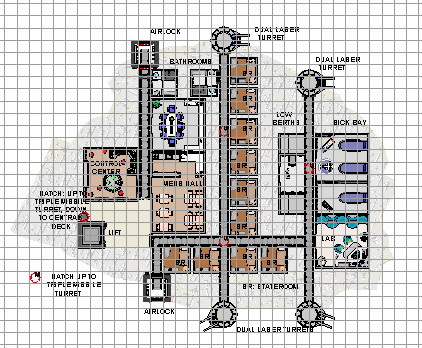

'A' DECK:  The top level of the
asteroid ship. Contains control
center, living quarters, medical &
science facilities.

Click the link below for the original
CC2 version of 'A' deck

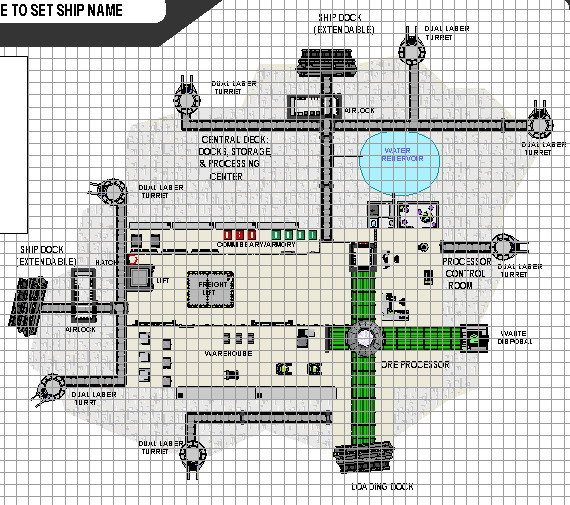

'B' DECK(ORE PROCESSOR VARIANT):  Besides the processor & the large water
reservoir to service it, this central deck contains arsenal, supplyroom, three docking
ports, 2 for loading/unloading ships & one for unloading ore.  Processed ore is
loading into a warehouse, while waste is loading onto automated garbage shuttles
that spread the wastage over the surface of the asteroid.
Click the link below for the original CC2 drawing of 'B' Deck, belter version

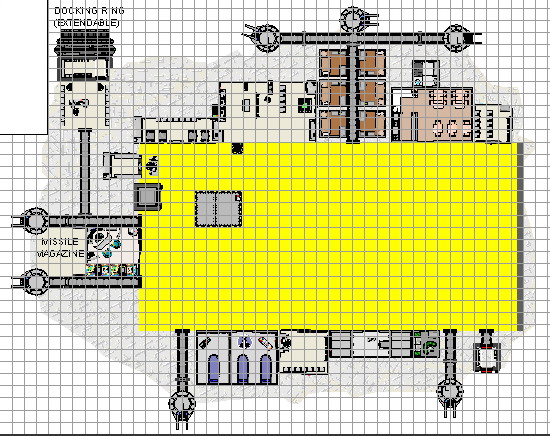

'B' DECK(HANGAR VARIANT):  The hangar can be used for small ships, both jump &
nonjump, or for servicing small craft such as fighters or shuttles.  Besides the large hangar
doors there is one ship dock  with attached EVA  and/or security room.
Click on the link below for the original CC2 drawing of 'B' deck hangar variant.

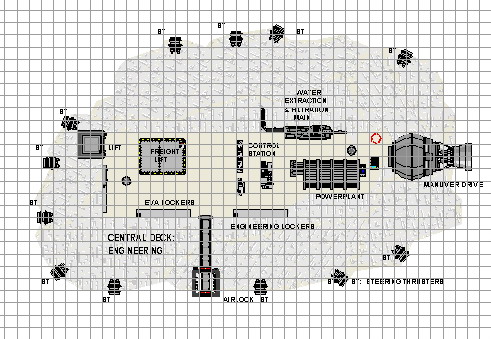

'C' DECK:  The engineering deck.  Contains powerplant, manuver drive, & water processing
plant.  Most of the remote control manuvering thrusters are located on this deck.  The rest of
the thrusters are located on the dorsal & ventral surfaces of the asteroid for up & down thrust.
Click the link below for the original CC2 drawing of 'C' deck.

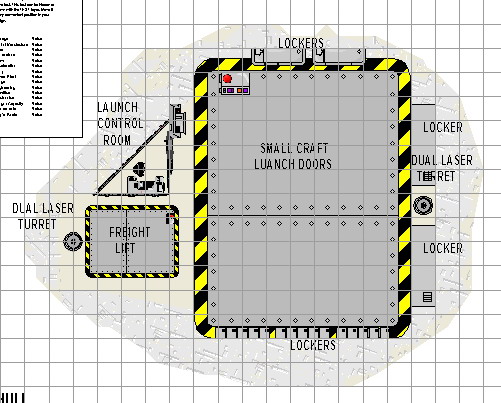

'D' DECK:  The lowest deck at the bottom of the asteroid is a small craft bay.   Includes access to
two ventral turrets defending the underside of the asteroid.
Click the link below for the original CC2 drawing of 'D' deck.
Counter
